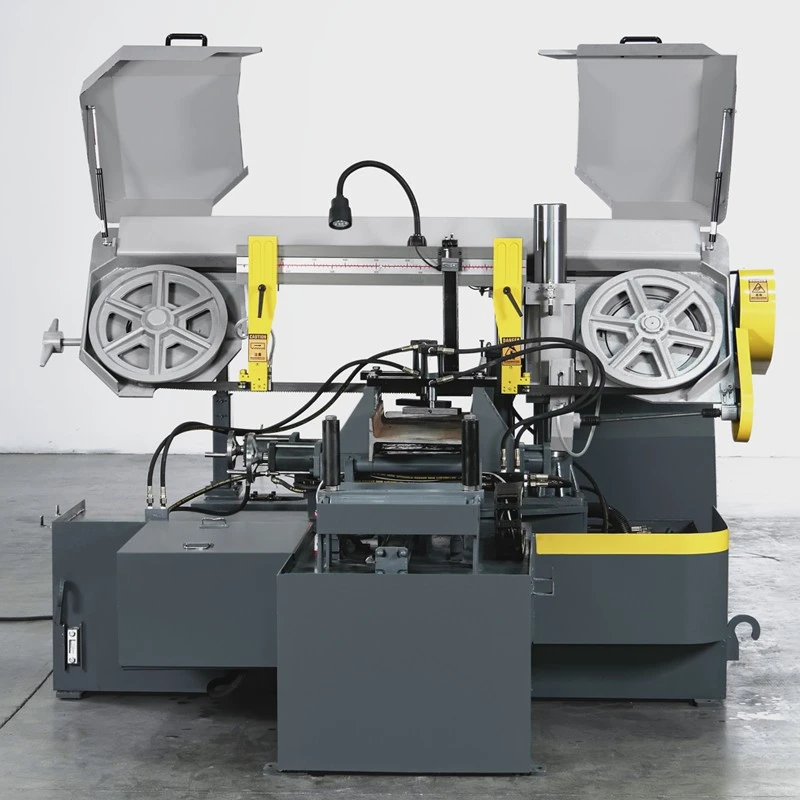

Miter Metal Cutting Machine
Brand: HUOXIAN
Model: TA- 33NC
Type: full-automatic Miter bandsaw machine
Description
Product Introduction
Miter metal cutting machine is a high-precision equipment designed for bevel cutting of metal materials. It supports 0°~45° bevel cutting and is widely used in high-precision cutting scenarios such as steel structure manufacturing, pipe processing, and mechanical maintenance.
Essential information:
- Brand: HUOXIAN
- Model: TA- 33NC
- Type: full-automatic Miter bandsaw machine
Product parameters
|
Model |
TA-33NC |
|
Cutting Capacity(mm) |
0°：■330(H)*330(W) 45°：■330(H)*330(W) |
|
Blade Speed(m/min) |
32/48/60/86 |
|
Blade Size(mm) |
34x1.1x4630 |
|
Main Motor(kw) |
4 |
|
Hydraulic Motor(kw) |
0.75 |
|
Cooling Motor(kw) |
0.04 |
|
Blade Tensioning Form |
Manual |
|
Vise Clamp |
Hydraulic+Manual |
|
Net Weight(kg) |
1752 |
|
Machine Size(L*W*H)(mm) |
2740x2440x1550 |
Features：
Powerful Power System
The equipment is equipped with a 4kW main motor and a 0.75kW hydraulic motor to ensure continuous and stable output under high load conditions.
Durable
The core components of the fuselage are made of high-wear-resistant manganese steel such as Mn13 and Mn13Cr2, and the normal service life can reach more than 10 years.
High Cutting Accuracy
The miter metal cutting machine adopts CNC precision processing technology, and the structural matching accuracy is controlled within ±0.2mm. Combined with the wire brush cleaning system and the stable feeding structure, it can effectively reduce cutting deviations and burrs.
